In Refrigerated Air Dryer, automatic drain is one of the key components to remove condensed water. However, although automatic drain plays an important role in cold dryer system, it is also the most prone to failure. In order to ensure the normal operation of cold dryer and avoid the impact of drain failure, it is particularly important to understand the working principle and daily maintenance of automatic drain.

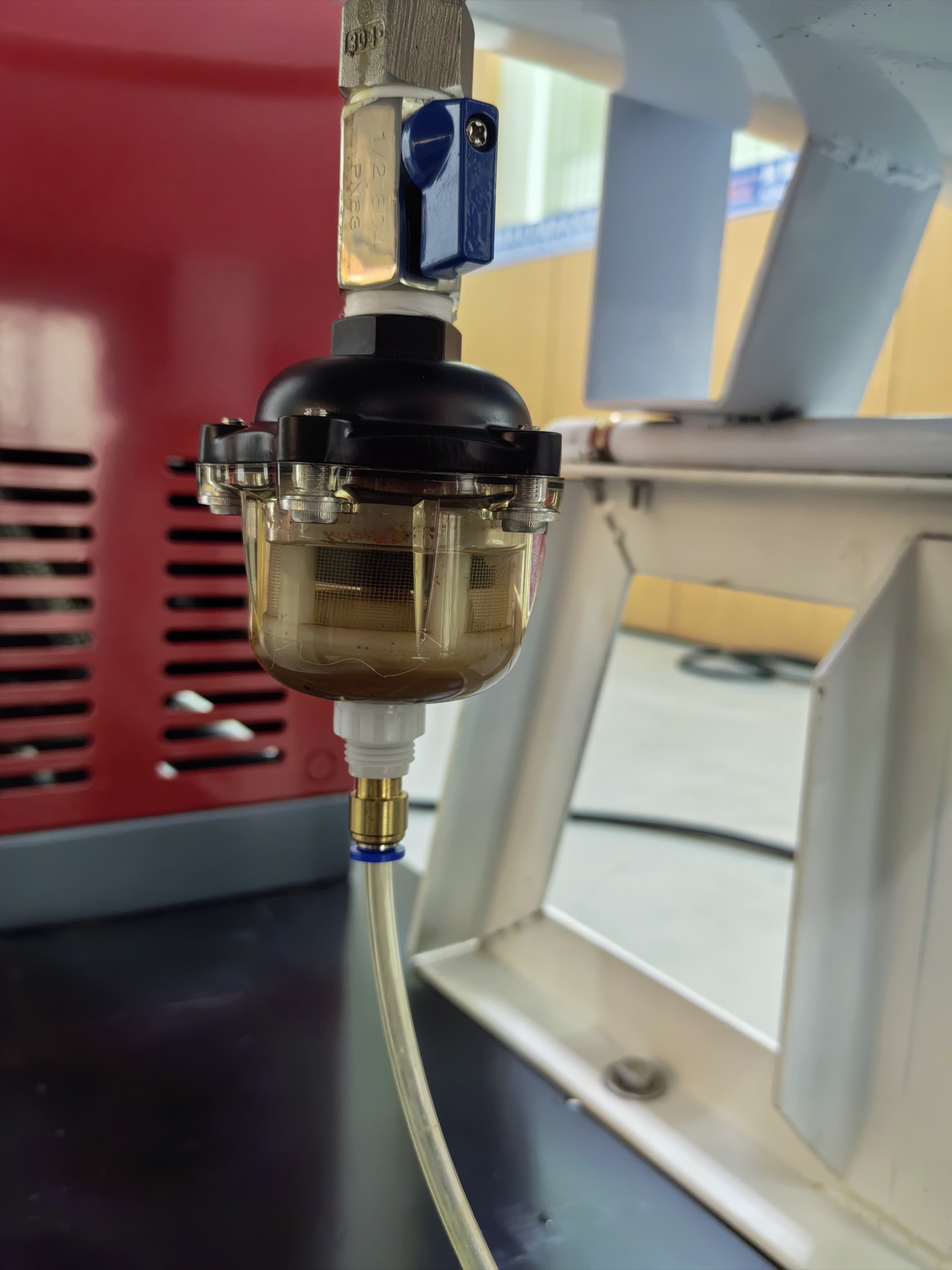

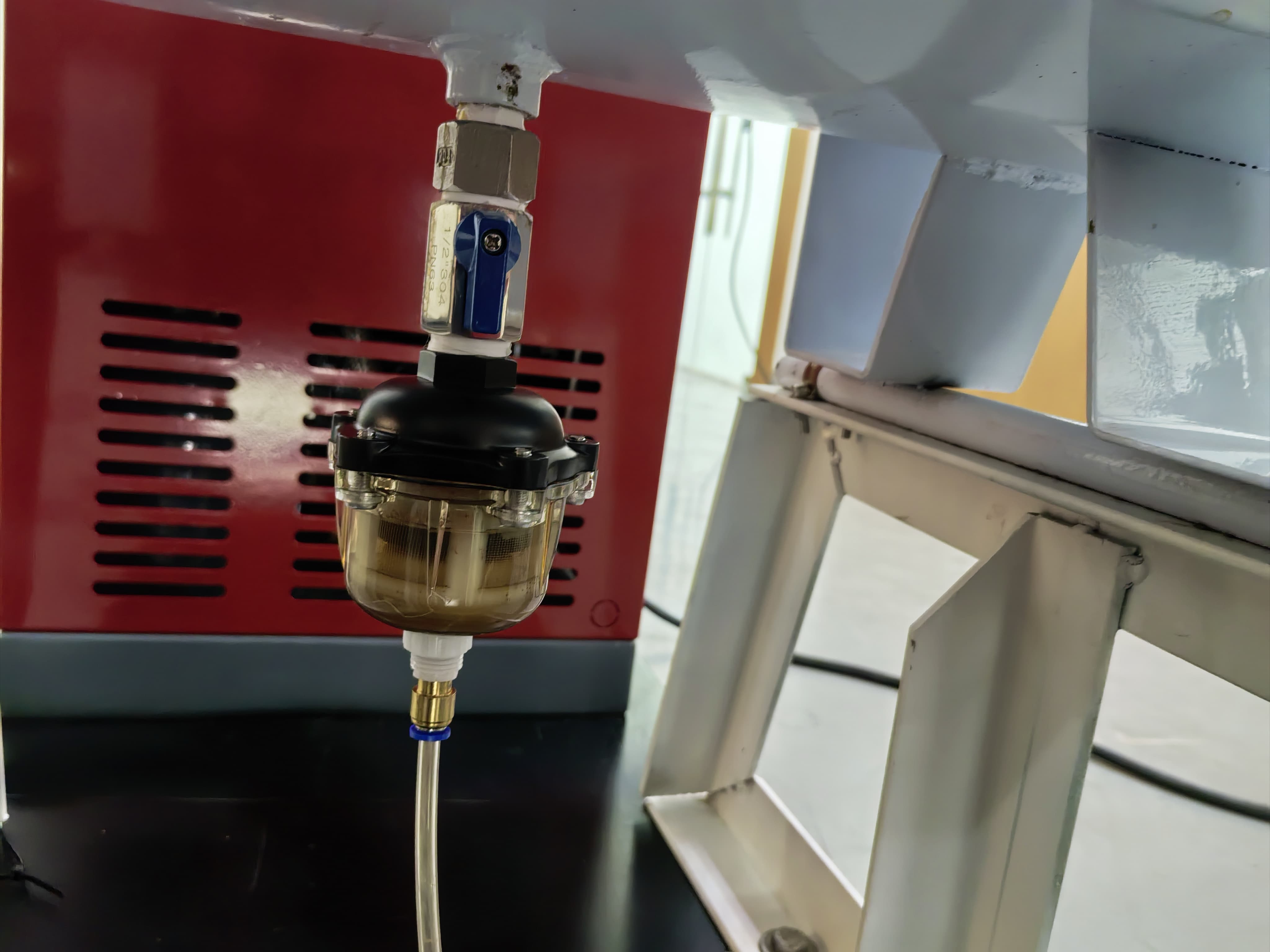

Working principle of Auto Drain Valve
The main function of automatic drain (also called automatic drain) in cold dryer is to drain condensed water in time. During the operation of cold dryer, water vapor in compressed air will condense into water due to temperature reduction. These waters contain impurities such as dust, oil, rust, etc. Therefore, the discharged water is not clean water, but a thick liquid containing solid impurities and oil.
Reasons why Auto Drainage is prone to failure
The main reasons why automatic drain is prone to failure are as follows:

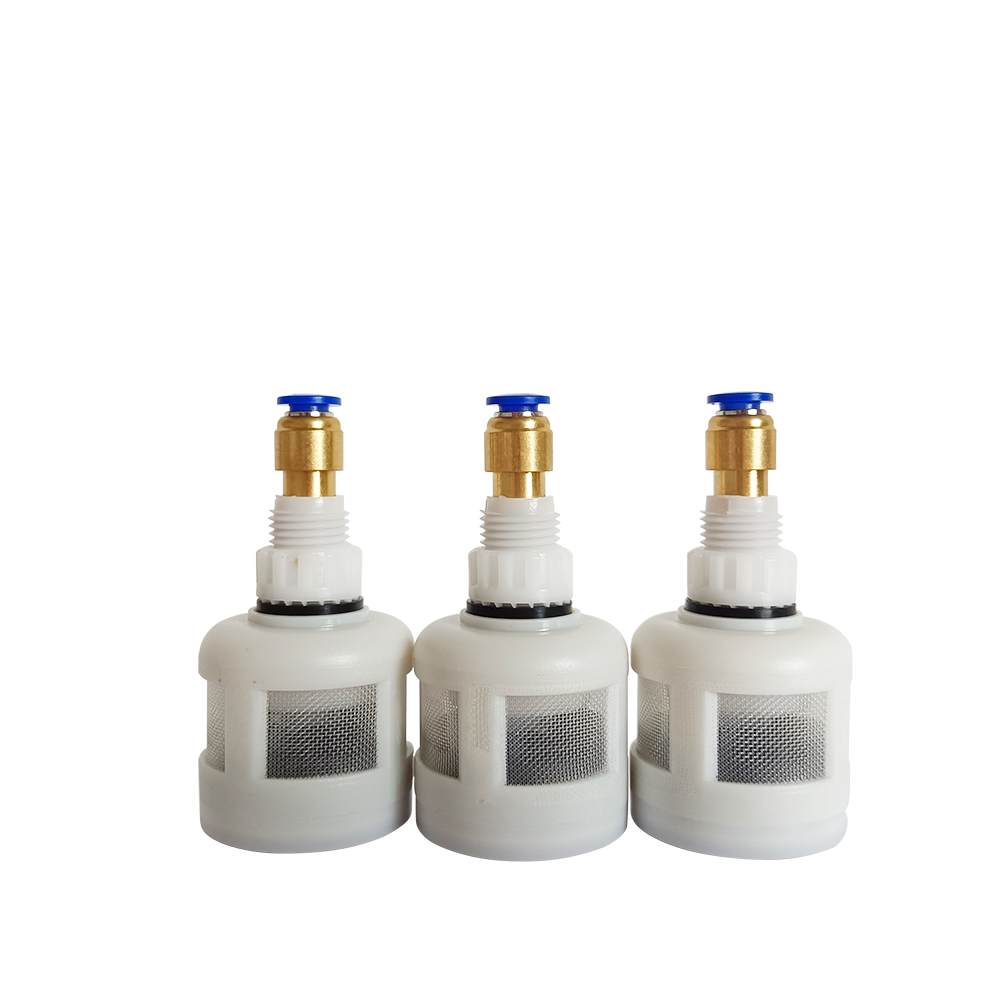

1. Impurity blockage: The water discharged from cold dryer is usually mixed with solid impurities, such as dust, rust, and oil, which will enter the drain with the water flow. Although the automatic drain is equipped with a filter, if the filter is not cleaned in time, oil and impurities will gradually accumulate, causing the drain port to be blocked. Blockage will prevent the water from flowing smoothly, affecting the normal drainage function of the dryer.
2. Insufficient pressure: The automatic drain requires a certain air pressure to work properly. If the working pressure of the dryer system is too low, the automatic drain may not start or leak, and the condensed water cannot be effectively discharged. Long-term low pressure may also cause damage to the drainer components.
3. Too low temperature: In a cold environment, condensed water may accumulate in the water storage cup of the automatic drain. If this water is not discharged in time, freezing may occur in a low temperature environment. Freezing will not only cause the drainer to be blocked, but may also cause the water storage cup to rupture and even damage other parts of the drainer. Therefore, when the operating temperature of the dryer is below zero, special attention should be paid to the maintenance of the drainer.
4. Overpressure problem: The automatic drain is designed with a rated working pressure range. If the system air pressure exceeds the rated pressure value of the drainer, it may cause the water storage cup to rupture or other parts to be damaged. Too high pressure will cause the automatic drain to bear too much workload, affecting its service life.
The Automatic Condensate Drain is a vital component of the cold dryer system. Its normal operation is directly related to the stability of the system and the drying effect of the compressed air. During use, in addition to ensuring the normal air pressure and temperature of the system, the user should also regularly maintain the automatic drain, especially cleaning the filter, checking the sealing and preventing ice formation.
These daily maintenance and maintenance measures can effectively avoid automatic drain failures, extend the service life of the equipment, improve the operating efficiency of the cold dryer, and ensure the normal operation of downstream equipment.
